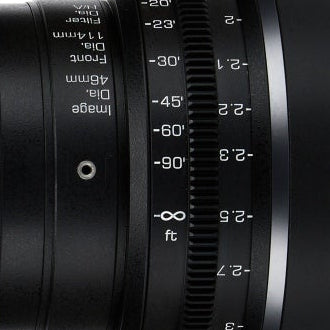

Focus Scale
Color & Coating
Mount Type
Weather Sealing

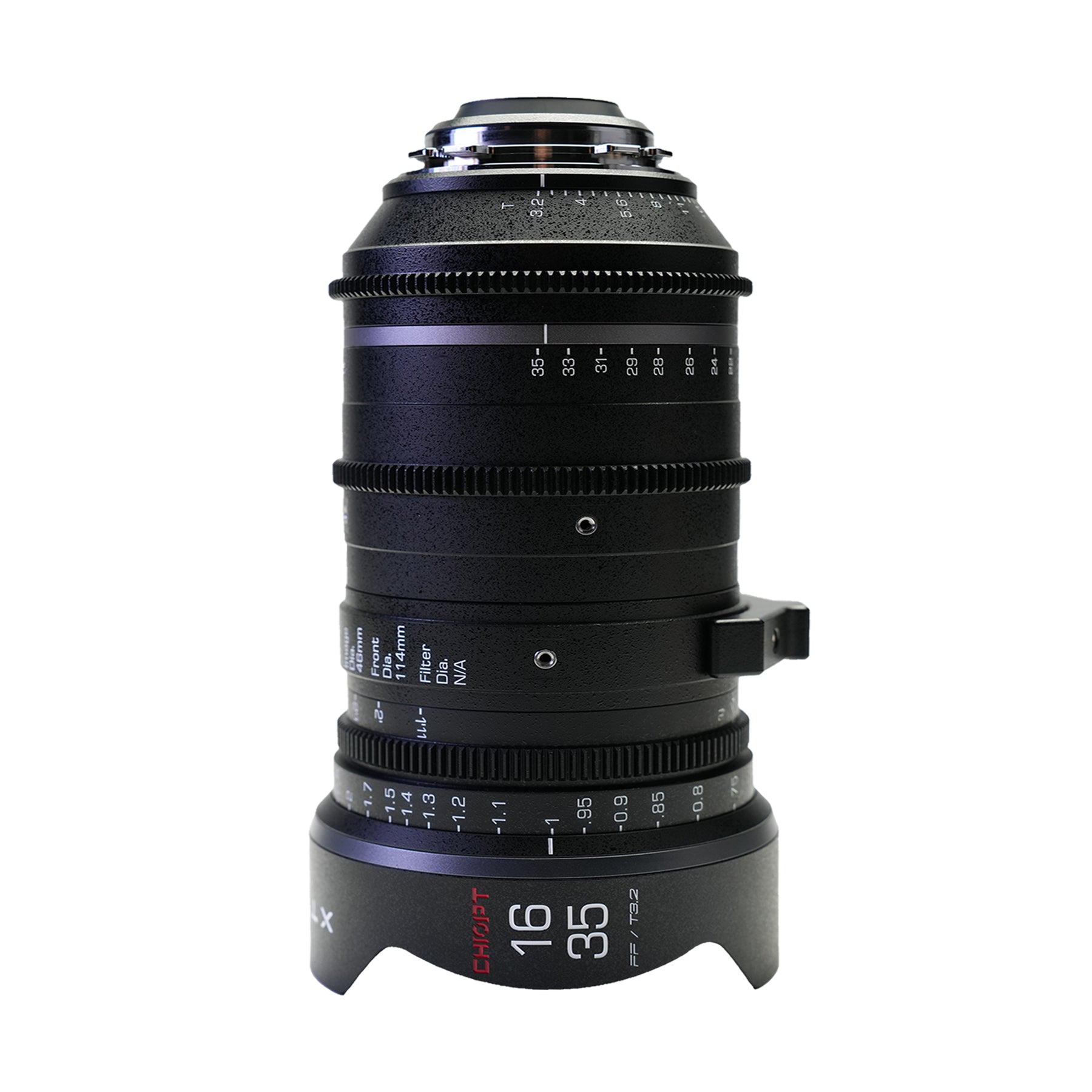

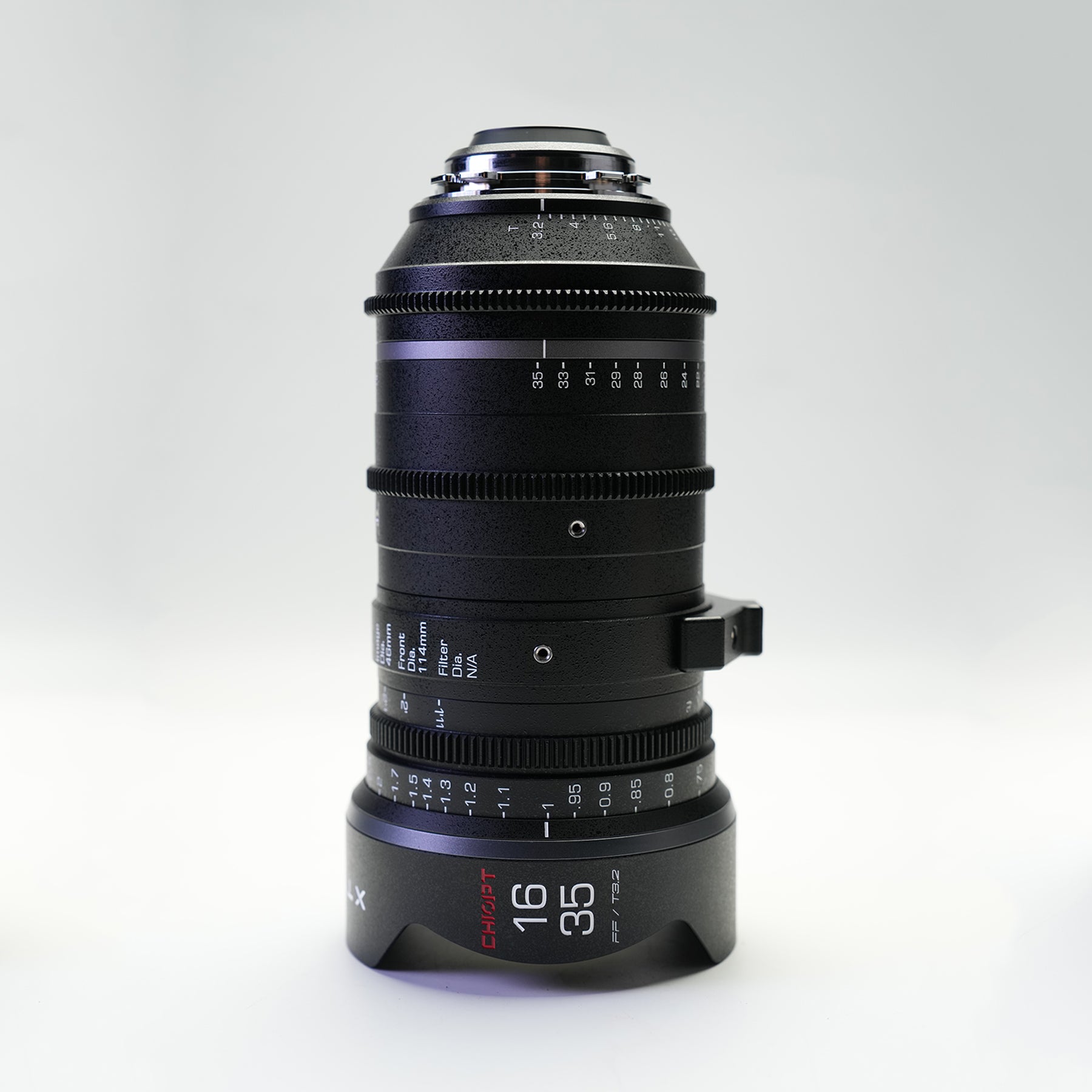

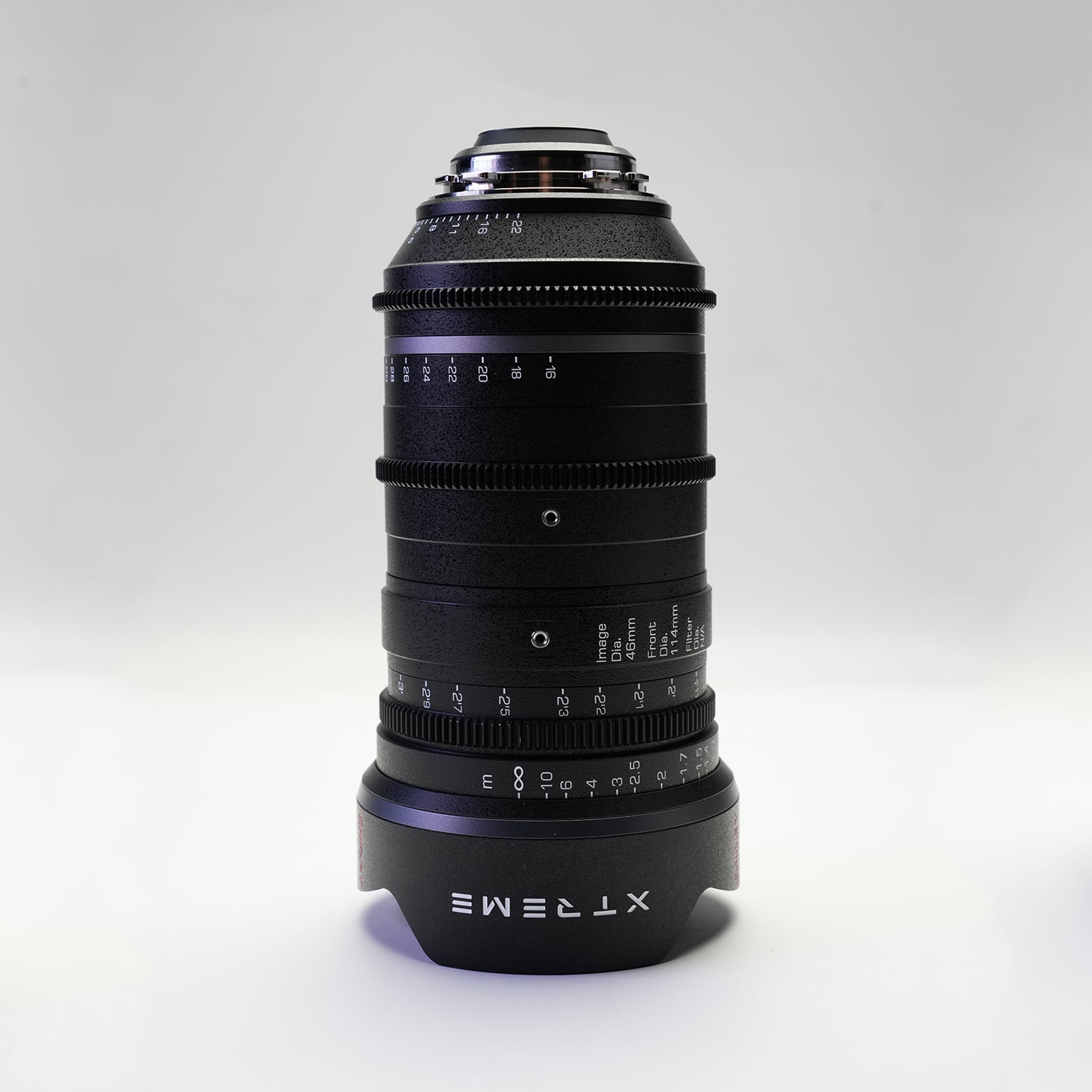

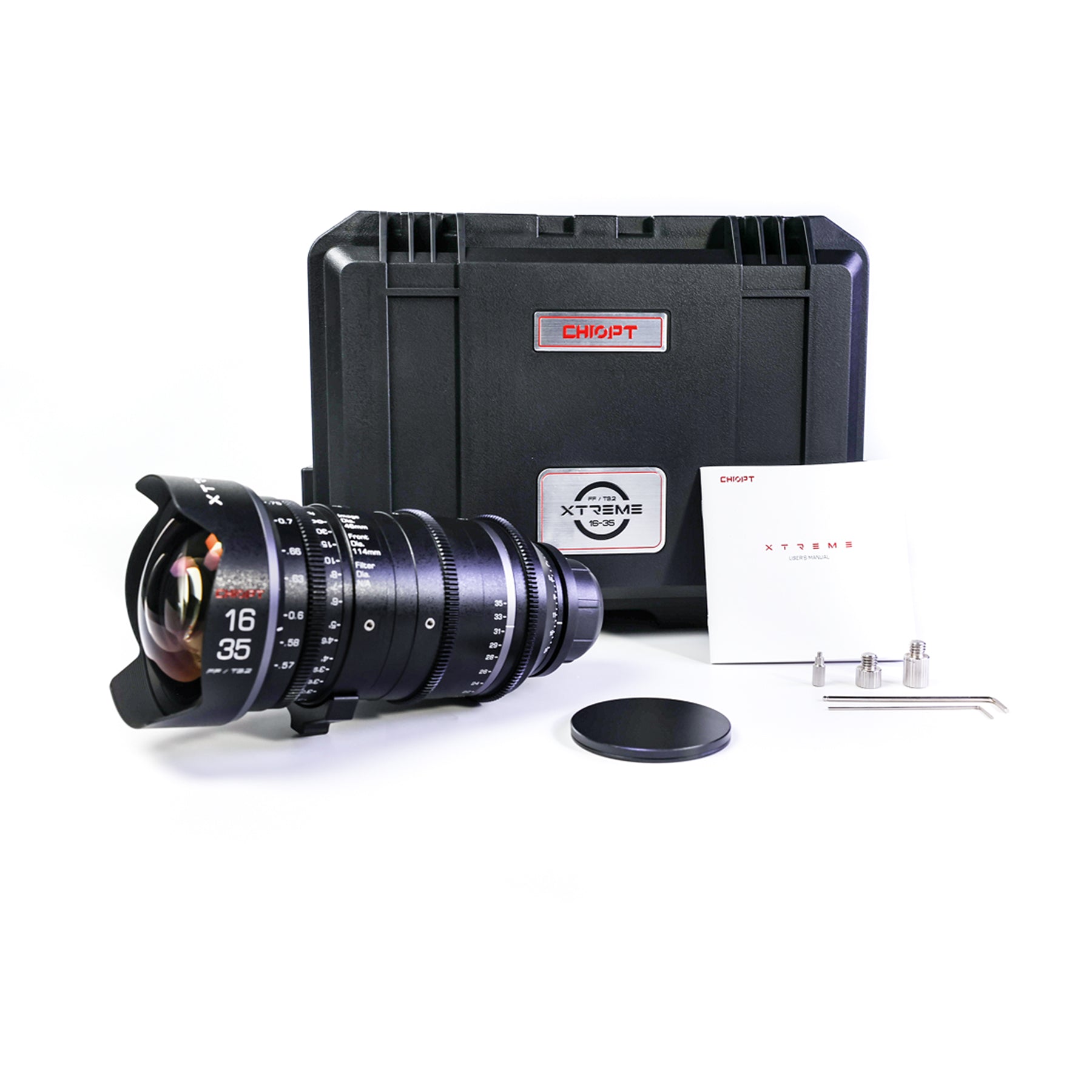

Xtreme Zoom 16-35mm
Popular upgrades
Pairs well with
Pro-Grade Cinematic Clarity
Rugged Build Quality
Rigorous QC Tested
30-Day Return Policy
Product Highlights
Focus Stability
Format Support
Optical Stability
Optical Quality
Aperture Range
Iris Blades
Image Circle
Front Diameter
Cine Gearing
Focus Scale
Color & Coating
Mount Type
Weather Sealing
Xtreme Zoom 16-35mm
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
- Ships within 1-2 business days.
- Fast worldwide delivery with tracking.
- Continental US only shipping.
- Non-continental areas, please contact us for a quote. -
Customer Support
Give us a few details and we'll offer the best solution. Connect by phone and email.
We are available Monday to Friday (9:00 am-5:00 pm PST)
-
Contact Us
We'd love to hear from you. Our team is here to help. Visit our contact page to send us a message.
SEE WIDER.
GO DEEPER.
HOLD THE FOCUS.
FOLLOW THE STORY.
Large Format Coverage
The 46mm image circle provides reliable coverage for large-format and Super 35 systems, ensuring consistent performance and long-term usability.

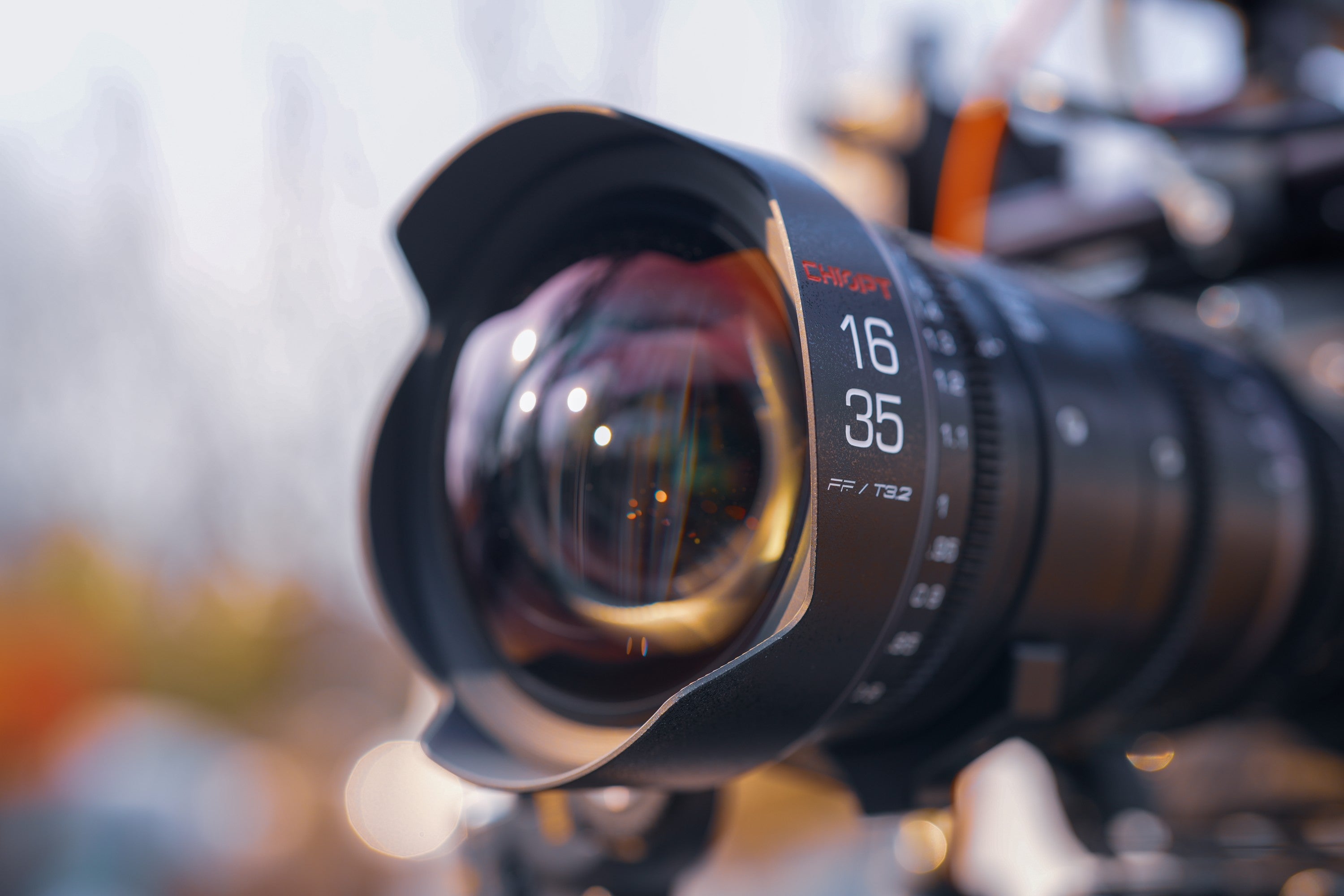

Wide. Immersive. Cinematic.
From expansive landscapes to confined spaces, the 16–35mm focal range gives filmmakers precise control over perspective and spatial expression. Go wide for scale and immersion, or move closer for a more dynamic sense of depth, crafted to bring cinematic dimension to every frame.
Focus Breathing
Engineered for stable framing, keeping perspective shifts to a minimum throughout the focus pull.
Distortion Control
Precisely controlled wide-angle rendering keeps lines natural and perspective clean across the frame.
Constant Aperture
- No dark corner
- High sharpness
- Constant equidistant T3.2 large aperture
- Precise control with full aperture range
- Easier to focus when shooting from a distance
Dust & Raindrop Defense
During the lens design process for this series, protection against sand, dust, and raindrops was significantly enhanced to ensure reliable performance in harsh conditions.
*Note: While sand, dust, and raindrop resistance are improved features of this product, they are not guaranteed. To minimize potential damage, please use the lens in a safe environment.

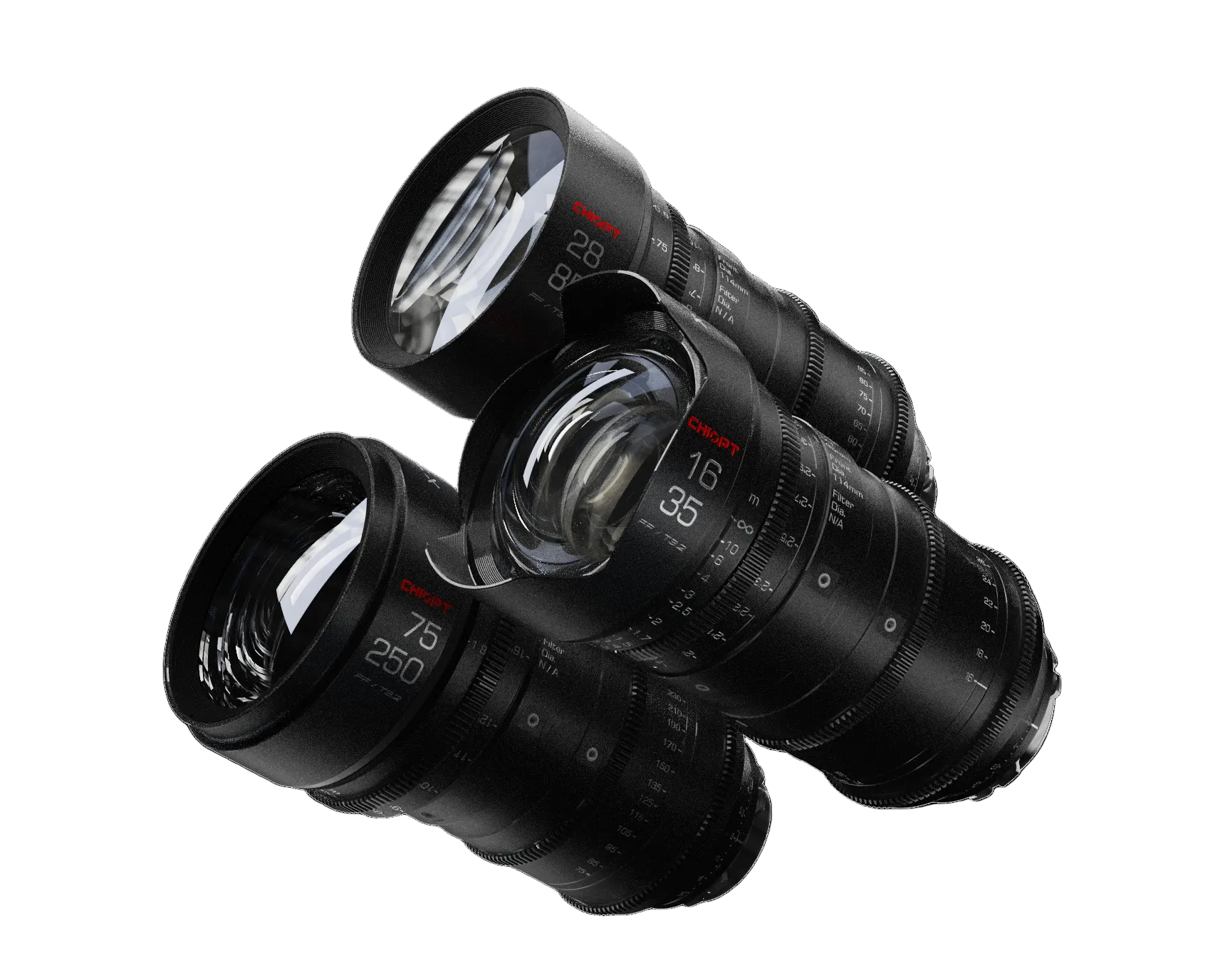

Shared Design
The unified design of the XTREME 16-25, 28-85 and 75-250 lenses ensures a smooth and efficient workflow, minimizing setup time and maximizing creative output.
- Same Size
- Same Ring Positions
- Same Support Base
- Same 114mm Front Diameter
- Consistent Color Reproduction
Cine-Grade Engineering

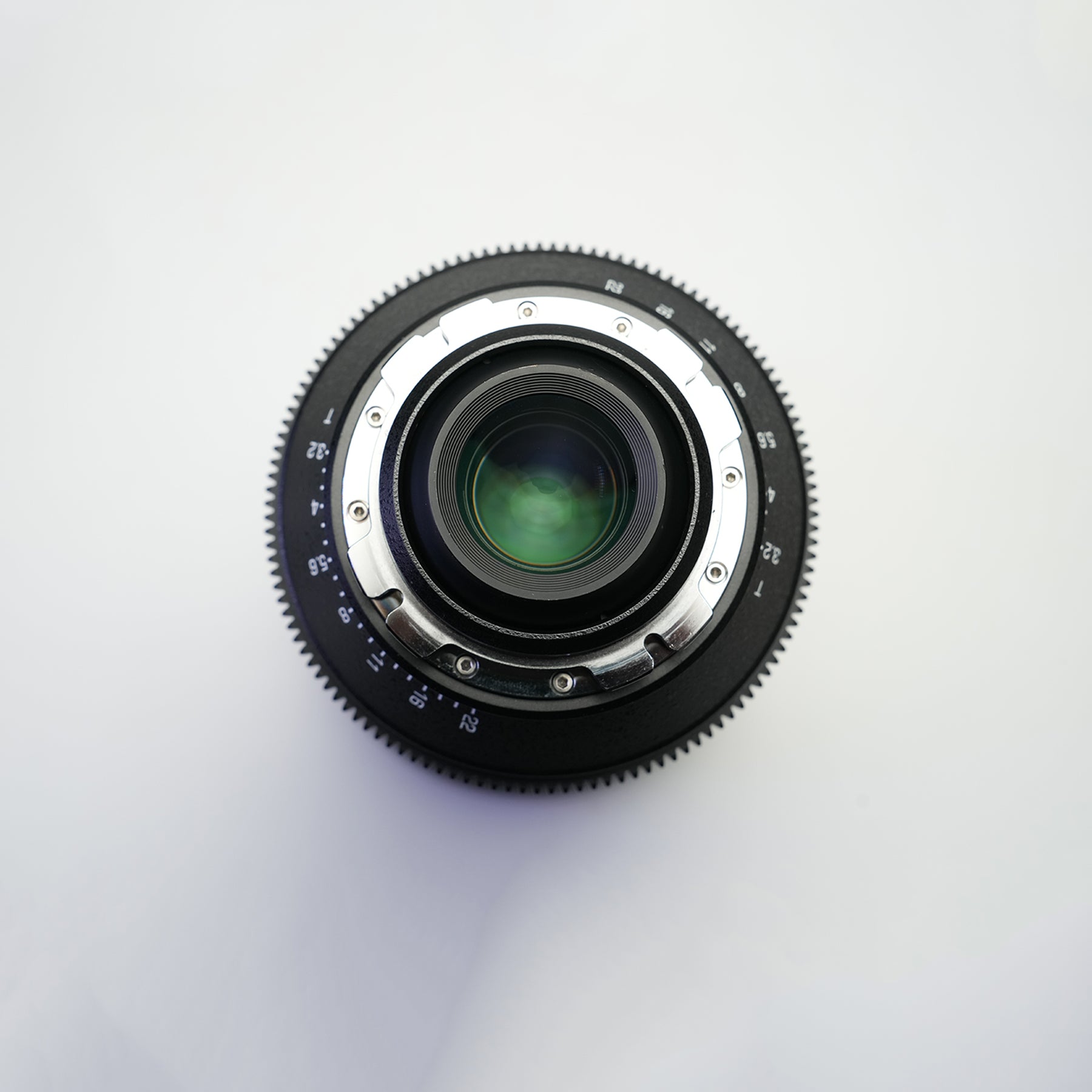

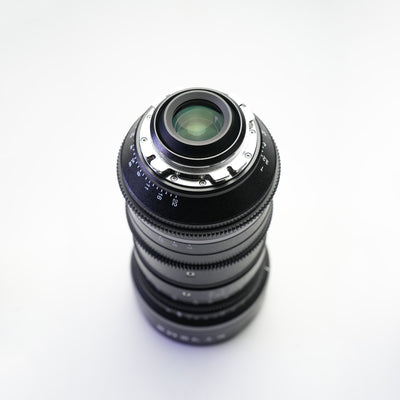

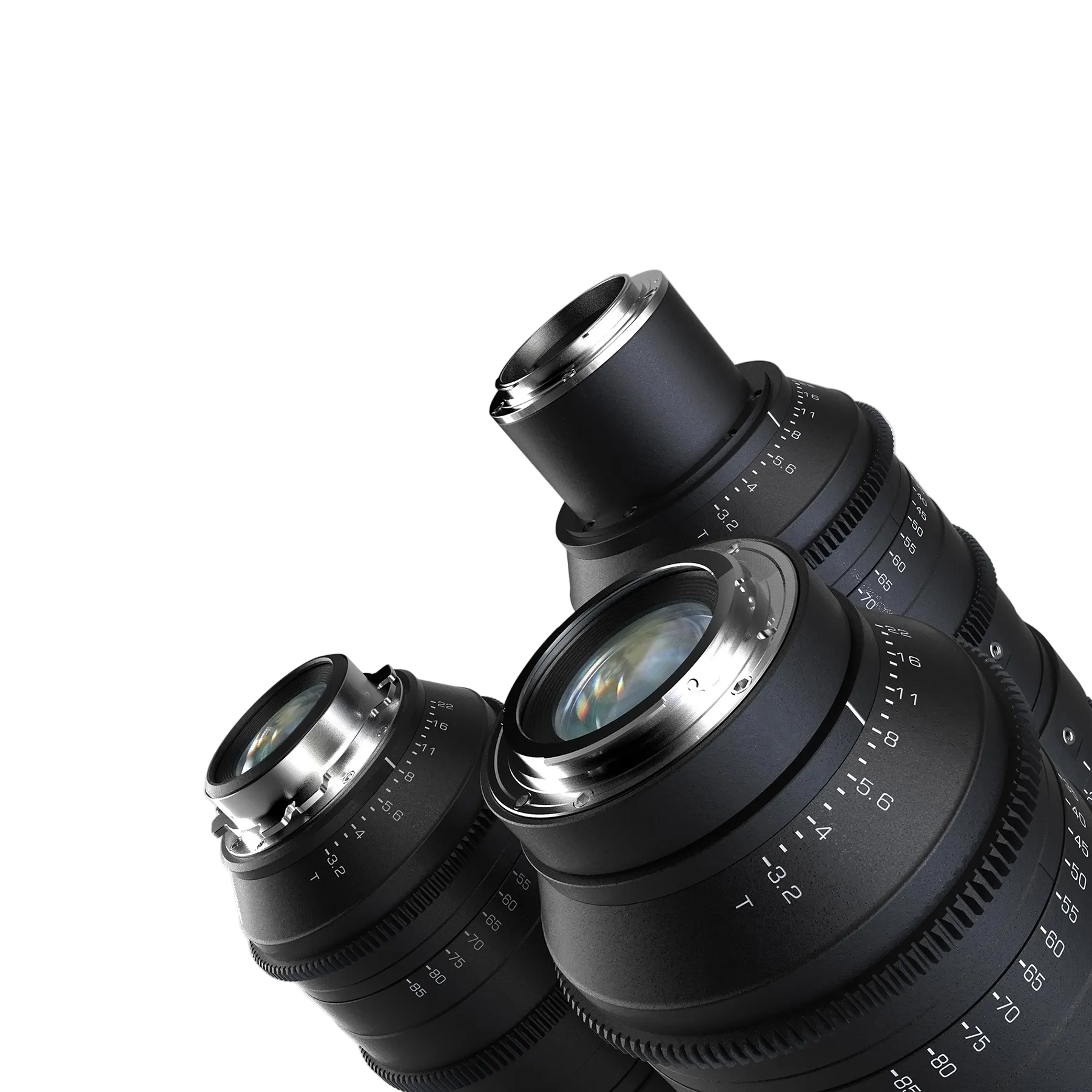

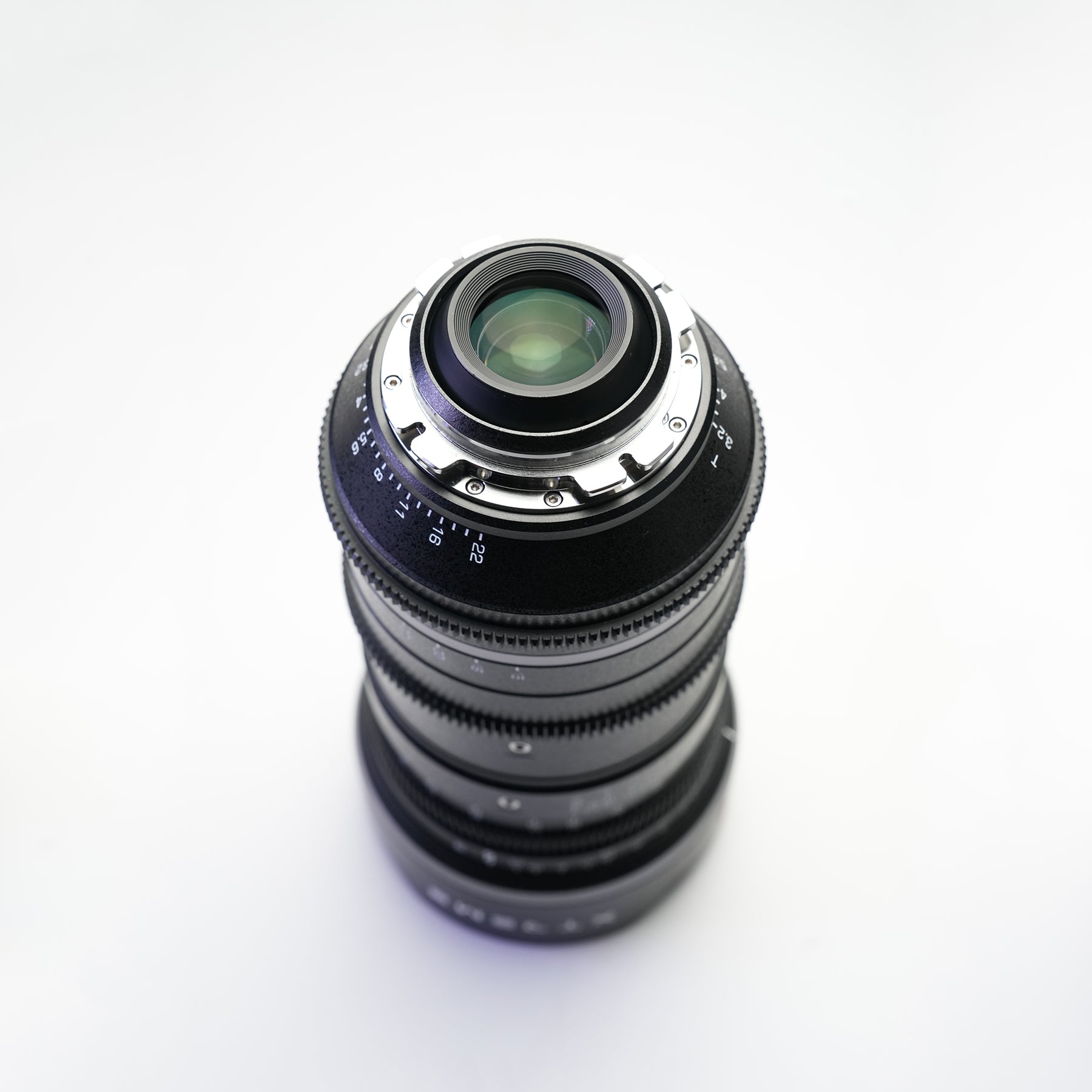

Multiple Mount

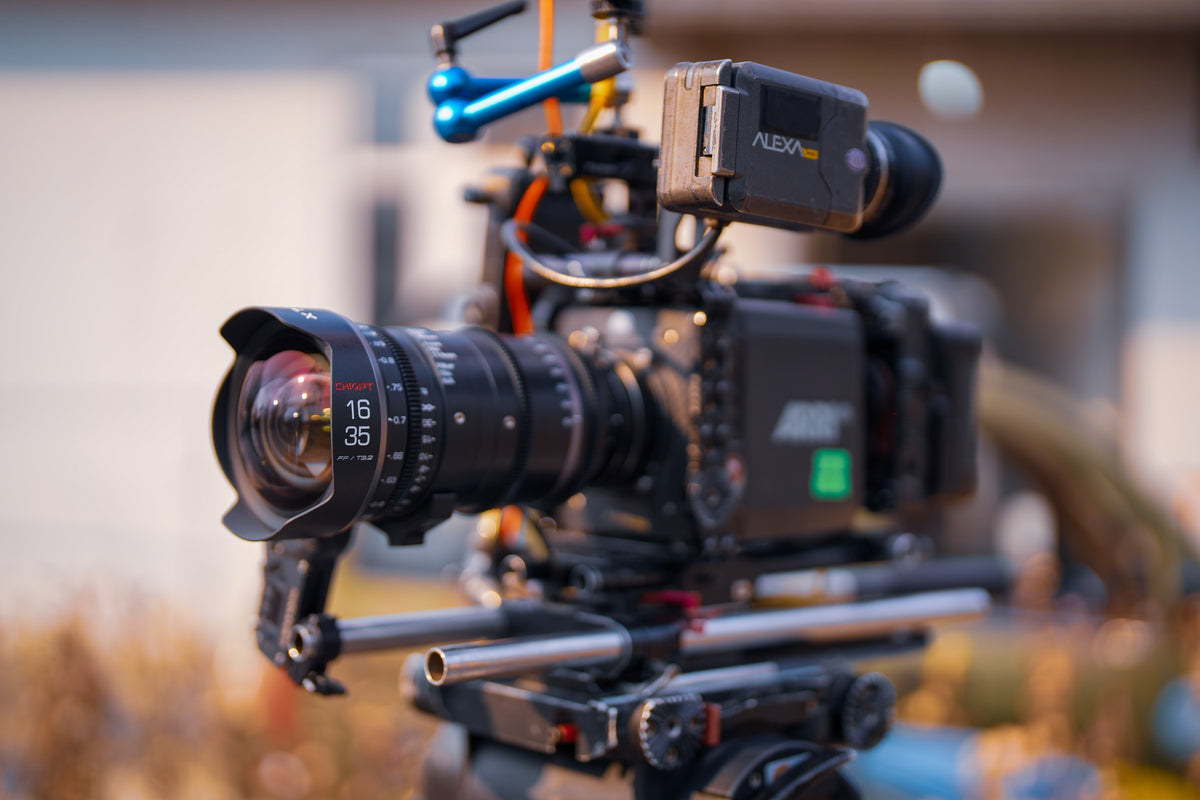

Features a standard PL mount, with durable stainless steel EF and E mounts available, ensuring compatibility with ARRI, Canon, and Sony camera systems.
Technical Specifications
Chiopt
Xtreme Zoom 16-35mm
Chiopt
Xtreme Zoom 28-85mm
Chiopt
Xtreme Zoom 75-250mm
Chiopt
Xtreme Zoom 16-35mm
Chiopt
Xtreme Zoom 28-85mm
Chiopt
Xtreme Zoom 75-250mm16-35mm
28-85mm
75-250mm
T3.2-T22
T3.2-T22
T3.2-T22
Φ 46mm
Φ 46mm
Φ 46mm
92.7~56.4°
66.4~24°
26.8~8.2°
77~44.2°
46.3~16.2°
17.9~5.54°
103.5~66.4°
76.5~28.2°
32~9.7°
1.12ft / 0.34m
1.3ft / 0.4m
4.9ft / 1.5m
1.87ft / 0.57m
2.3ft / 0.7m
5.9ft / 1.8m
0.05-0.1x
0.05-0.15x
0.05-0.18x
16mm: (728x493mm);35mm: (369x248mm)
28mm: (723x470mm); 85mm: (233x157mm)
75mm: (646x429mm); 250mm: (197x133mm)
2.18x
3x
3.5x
103°
103°
104°
84°
84°
84°
9pcs
9pcs
11pcs
288°
288°
288°
123 Teeth 0.8 MOD
123 Teeth 0.8 MOD
123 Teeth 0.8 MOD
PL / EF / E
PL / EF / E
PL / EF / E
52mm (PL); 44mm (EF); 18mm (E)
52mm (PL); 44mm (EF); 18mm (E)
52mm (PL); 44mm (EF); 18mm (E)
N/A
N/A
N/A
Φ 114mm
Φ 114mm
Φ 114mm
Φ 114mm
Φ 114mm
Φ 122mm
229.2mm (PL); 229.2mm (EF); 254.5mm (E)
228mm (PL); 229mm (EF); 254.5mm (E)
228mm (PL); 229mm (EF); 254.5mm (E)
2.7kg (PL); 2.75kg (EF); 2.8kg (E)
2.7kg (PL); 2.75kg (EF); 2.8kg (E)
2.9kg (PL); 2.95kg (EF); 3.1kg (E)
Extend Your Reach
The XTREME lens is designed to integrate flawlessly with a wide range of models and accessories, allowing smooth transitions between shooting scenarios and unlocking your creative potential.
