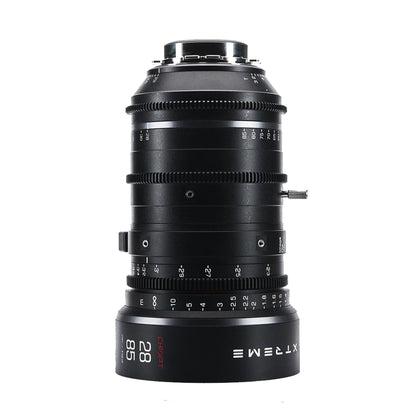

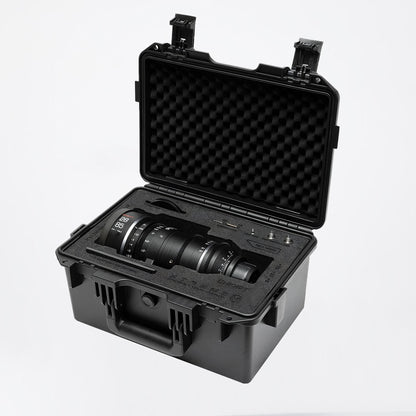

Xtreme Zoom 28-85mm
Xtreme Zoom 28-85mm T3.2 (PL Mount)
- Interchangeable with EF and E mounts (sold separately)

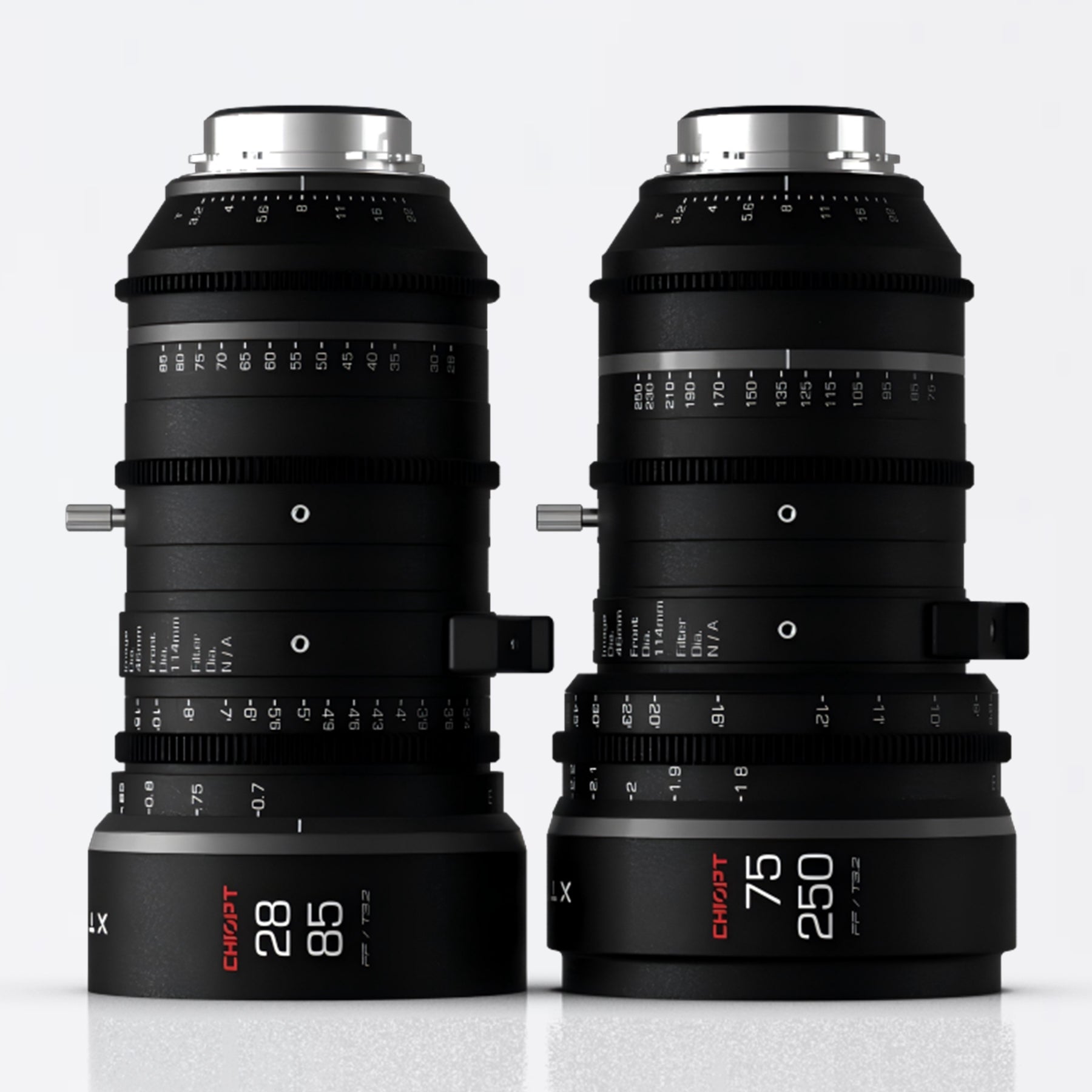

- Color-/Weight-Matched with 75-250mm Zoom
- 9-Blade Iris, T3.2-T22 Aperture
- 3x Zoom Ratio

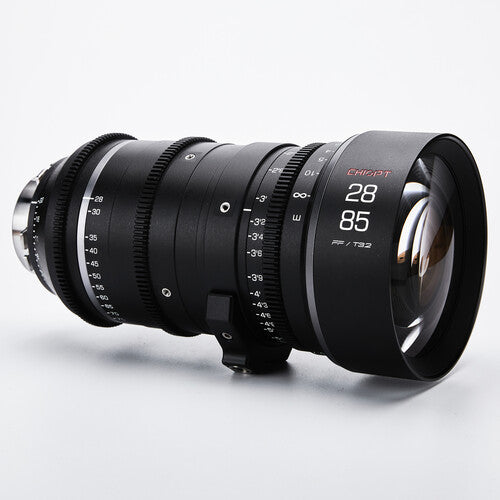

- 114mm Front Diameter
- 288° Focus Ring Rotation
- 103° Zoom Ring Rotation
- Parfocal Design to Zoom & Maintain Focus
- Minimal Lens Breathing Distortion
- Minimum Focus Distance of 15.7"
- Focus Scales Visible in Meters & Feet
Popular upgrades
Pairs well with
Xtreme Zoom 28-85mm
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Expansive Views, Exceptional Clarity
Reach Further, Capture More
Perfect Balance, Stunning Detail

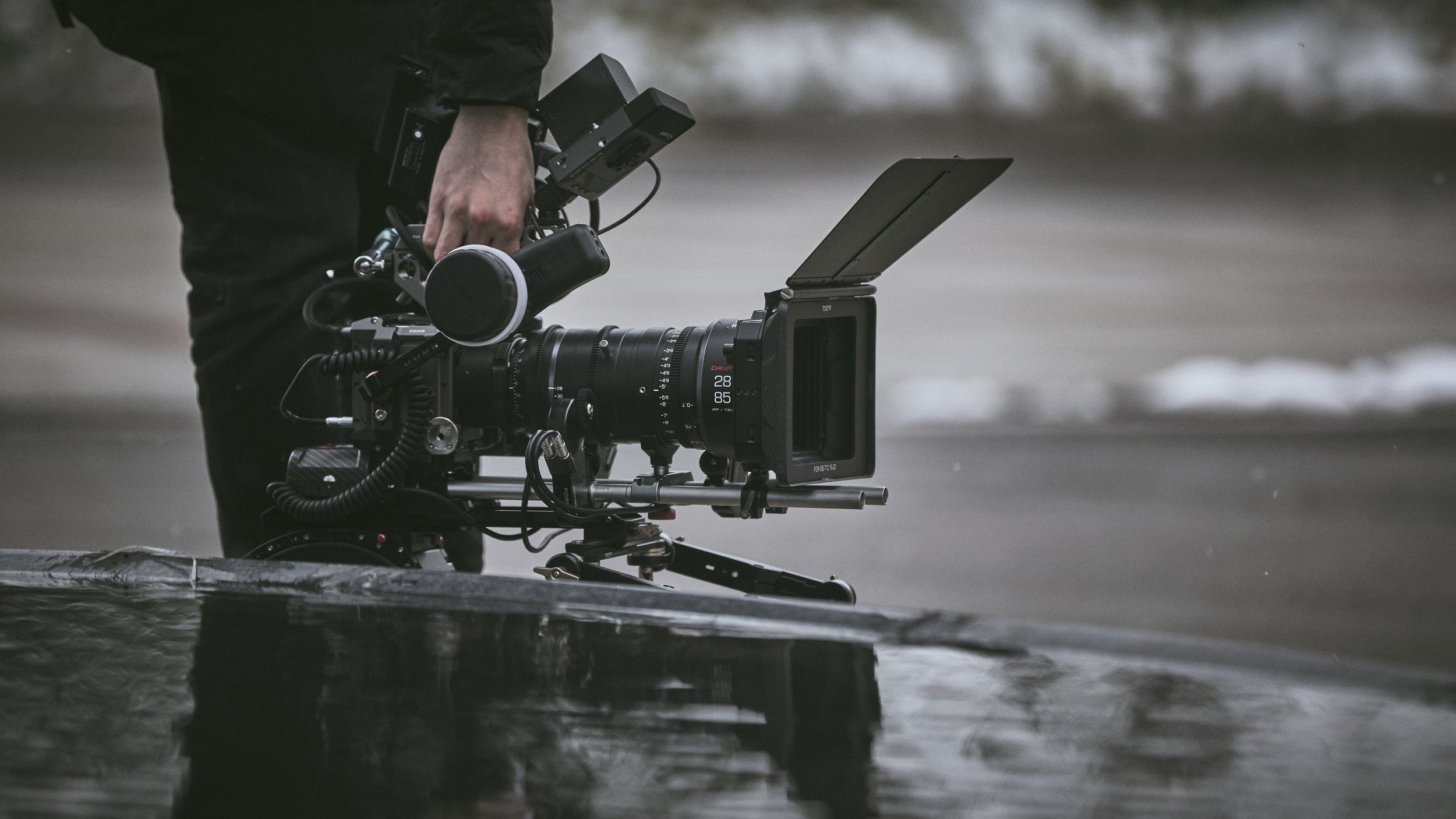

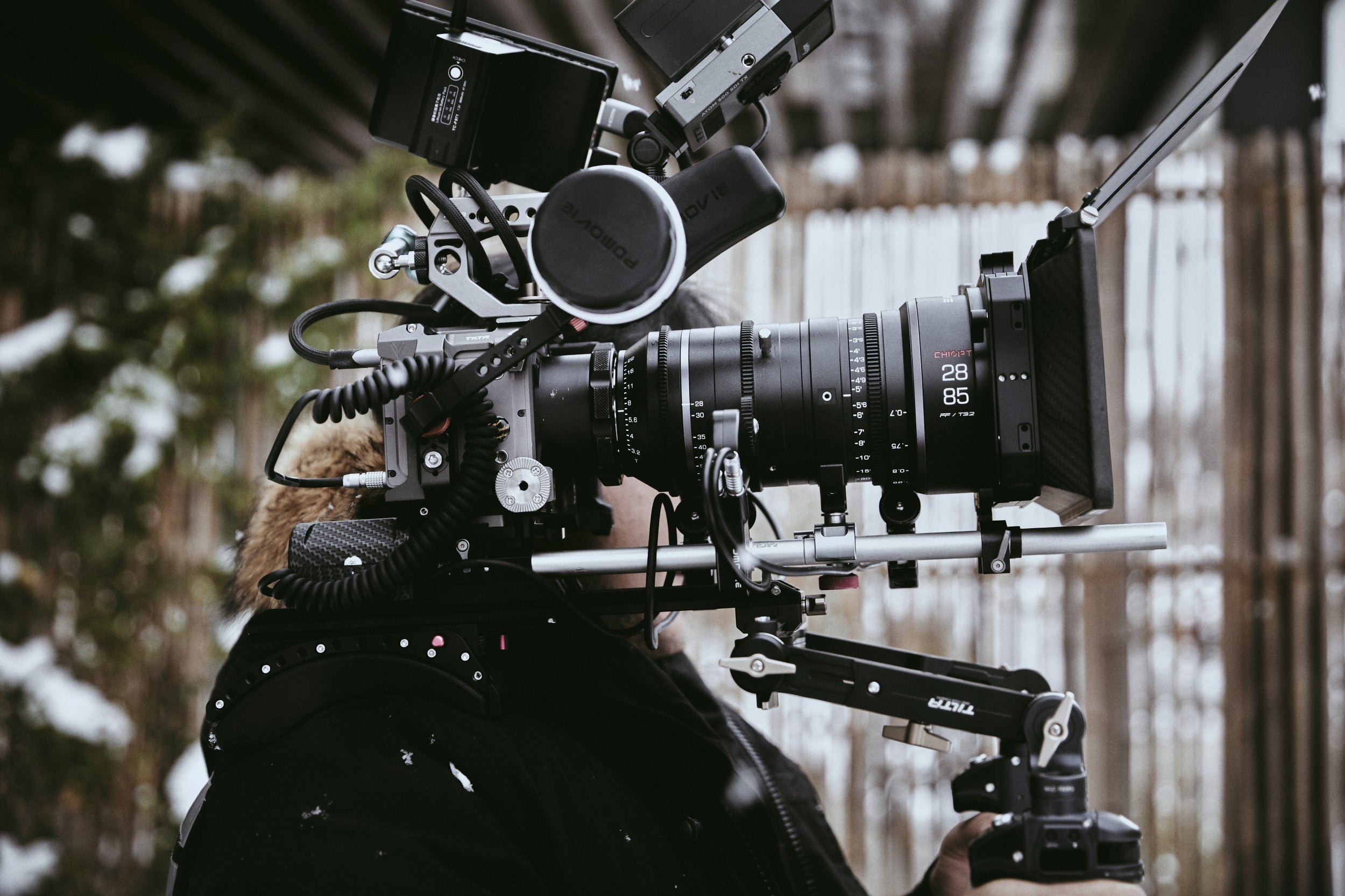

Streamlined for Mobility

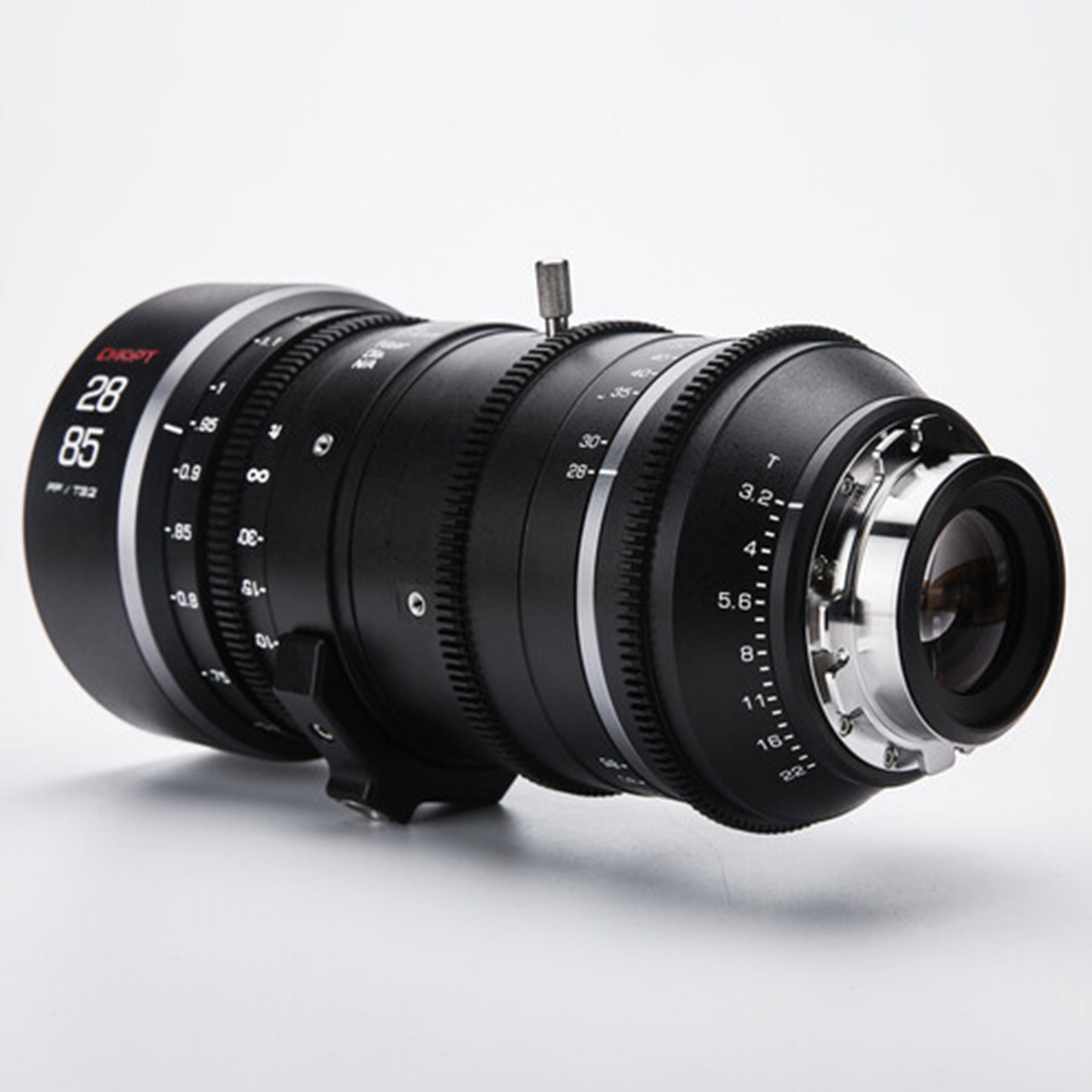

The XTREME Zoom series cine lens features an all-metal structure with a carefully controlled volume and weight, providing a robust and professional-grade design. Despite its full-frame zoom capabilities, this lens is designed to be lightweight, ensuring comfortable handling during long shoots.
3X Zoom Power
Experience the convenience of a single lens that seamlessly transitions from wide-angle to telephoto. This 28-85mm zoom range empowers you to capture diverse perspectives with ease.
Broad Compatibility, Lasting Value
With a 46mm field diameter, this lens supports a diverse range of large format camera systems. Its compatibility with Super 35 format ensures a prolonged lifecycle and maximizes your investment value.

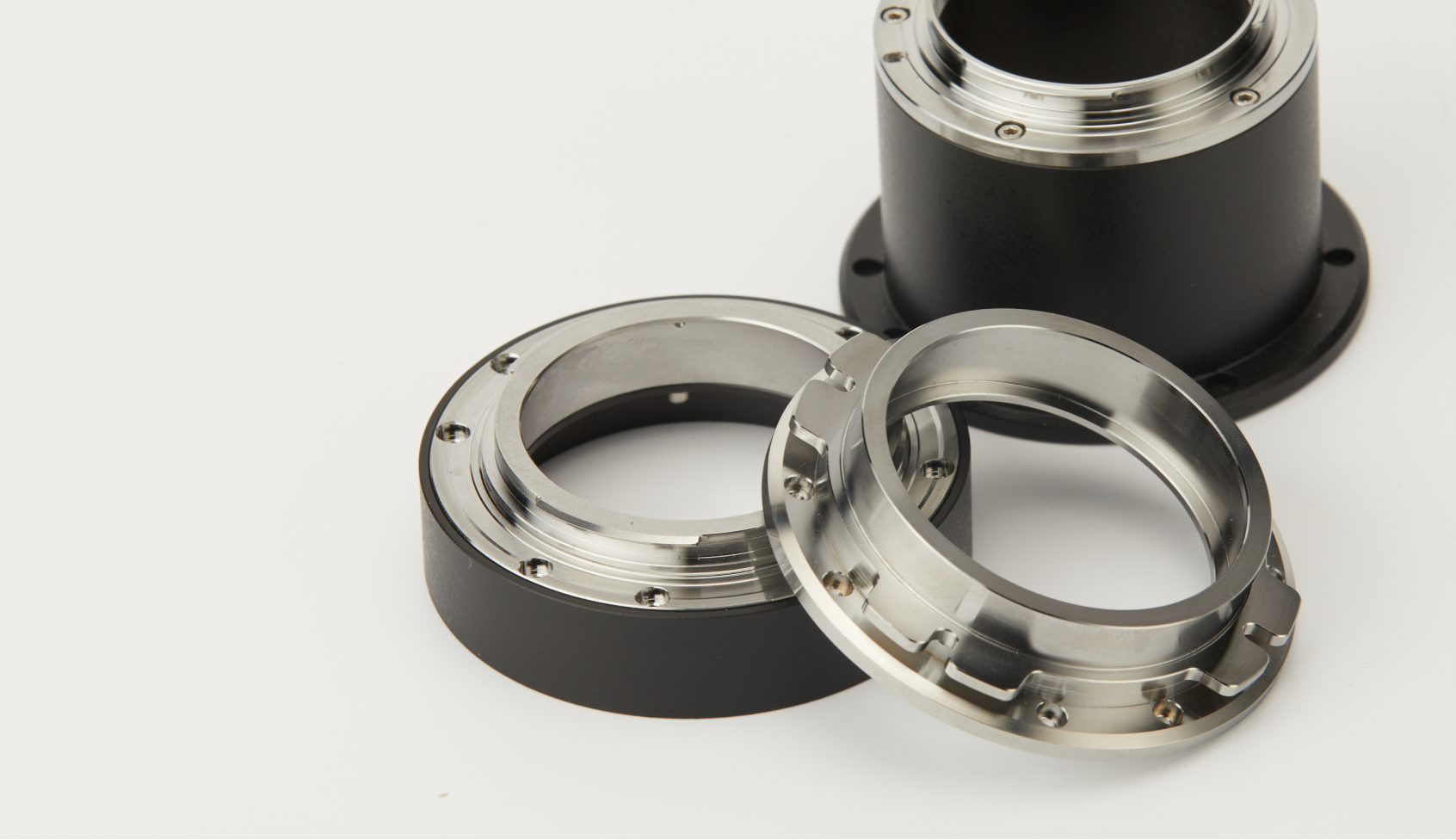

Multi-Mount Flexibility

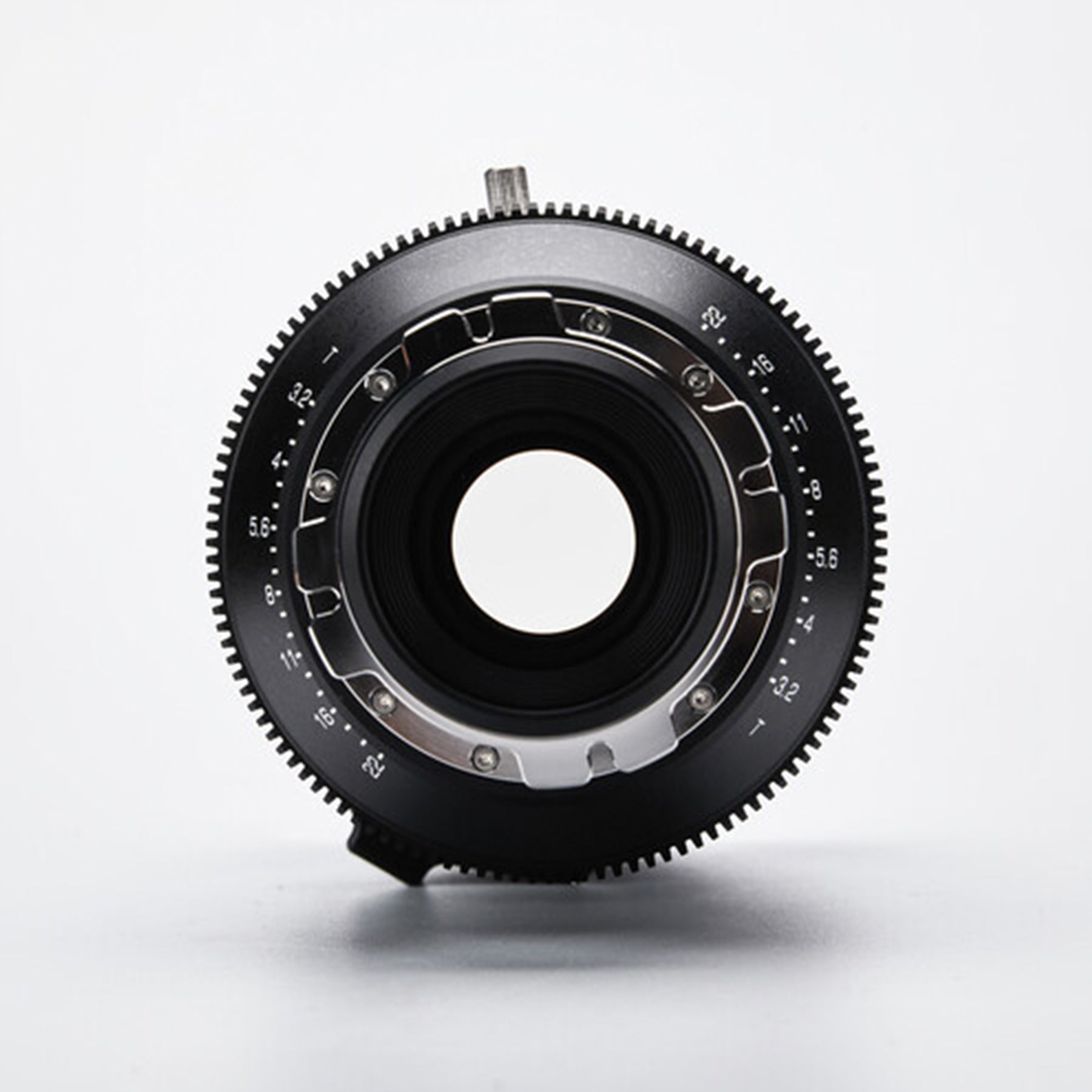

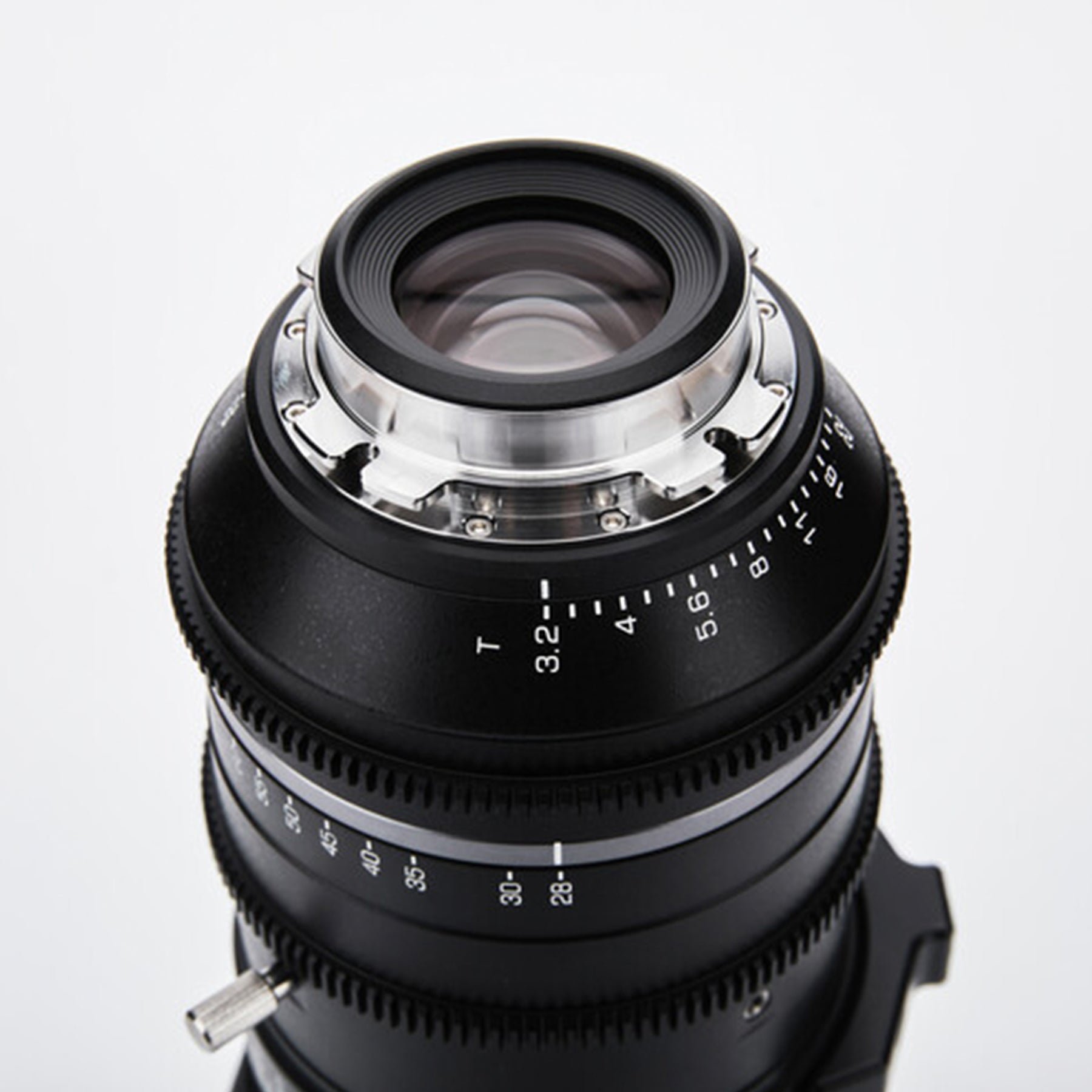

The XTREME Zoom lens comes with a PL native mount as standard, ensuring seamless integration with a variety of camera systems. For added flexibility, EF and E mounts are also available.
| XTREME ZOOM 28-85mm / T3.2 | XTREME ZOOM 75-250mm / T3.2 | |
|---|---|---|
| Lens Mount | PL / EF / E | PL / EF / E |
| Minimum T Stop | T3.2 (F2.8) | T3.2 (F2.8) |
| Focal Length | 28-85mm | 75-250mm |
| Imaging Circle (Image Diameter) | Ø 46mm | Ø 46mm |
| Flange Distance | 52mm (PL) / 44mm (EF) / 18mm (E) | 52mm (PL) / 44mm (EF) / 18mm (E) |
| Aperture Range | T3.2-T22 | T3.2-T22 |
| Front Diameter | Ø 114mm | Ø 114mm |
| Filter | N / A | N / A |
| MOD From Lens Front | 0.4m | 1.5m |
| MOD Magnification | 0.05-0.15x | 0.05-0.18X |
| MOD From Sensor Plane | 0.7m | 1.8m |
| Shooting Area for MOD | 28mm: (723 x 470mm) 85mm: (233 x 157mm) |
75mm: (646 x 429mm) 250mm: (197 x 133mm) |
| Zoom Ratio | 3x | 3.5x |
| Horizontal FOV (Field Of View) | 66.4 ~ 24° | 26.8 ~ 8.2° |
| Vertical FOV (Field Of View) | 46.3 ~ 16.2° | 17.9 ~ 5.54° |
| Diagonal FOV (Field Of View) | 76.5 ~ 28.2° | 32 ~ 9.7° |
| Number of Iris Blades | 9 pcs | 11 pcs |
| Angle of Aperture Ring Rotation | 84° | 84° |
| Angle of Zoom Rotation | 103° | 104° |
| Angle of Focusing Ring Rotation | 288° | 288° |
| Gear Pitch | 0.8 MOD | 0.8 MOD |
| Maximum Diameter VS Length | Ø 114 * 228 (PL) * 229 (EF) * 254.5 (E) | Ø 122 * 228 (PL) * 229 (EF) * 254.5 (E) |
| Weight (kg) | 2.7kg (PL) / 2.75kg (EF) / 2.8kg (E) | 2.9kg (PL) / 2.95kg (EF) / 3.1kg (E) |
